Main technical parameters

1. Rated load 2000kg (when double cages, each cage usually has a load of 2000kg).

2. Maximum lifting height
Usually up to 200m-500m (determined by the standard section and wall bracket configuration).

3. Operating speed
0-63m/min (frequency control, specific speed adjustable).

4. Cage size (length, width, height)
About 3.0m, 1.5m, 2.5m (specific size may vary due to different configurations).

5. Standard section size
Height: usually 1.508m/section;
Section size: 650mm×650mm or similar (need to confirm the specific model).
6. Motor power
Main motor power: about 2×13kW (dual motor drive, specific power depends on speed).

7. Power supply parameters
380V/50Hz, three-phase five-wire system.

8. Safety device
Anti-fall safety device (speed limiter), upper and lower limit switches, emergency stop button, door interlocking device, etc.

Other configurations

Drive mode: rack and pinion transmission, dual motor drive.

Control mode: frequency conversion control, smooth start and stop.

Wall bracket spacing: generally set one every 6-9 meters (adjusted according to floor height and wind load).

Precautions

1. The actual parameters may vary due to product upgrades or customer customization requirements. Please refer to the "Product Instructions" or technical manuals officially provided by Zoomlion.

2. Installation, disassembly and use must comply with national standards (such as GB/T 10054 "Construction Elevator").

If you need accurate data, it is recommended to contact Zoomlion customer service directly or visit the official website to inquire about the latest models (such as SC200/200B or SC200/200ES and other derivative models).

Factory Stock

Factory

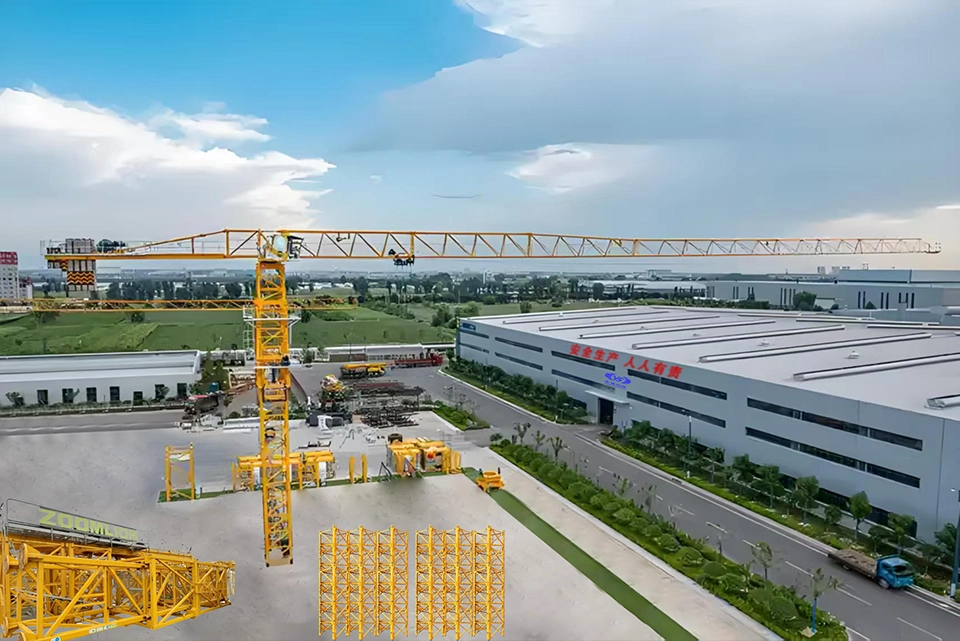

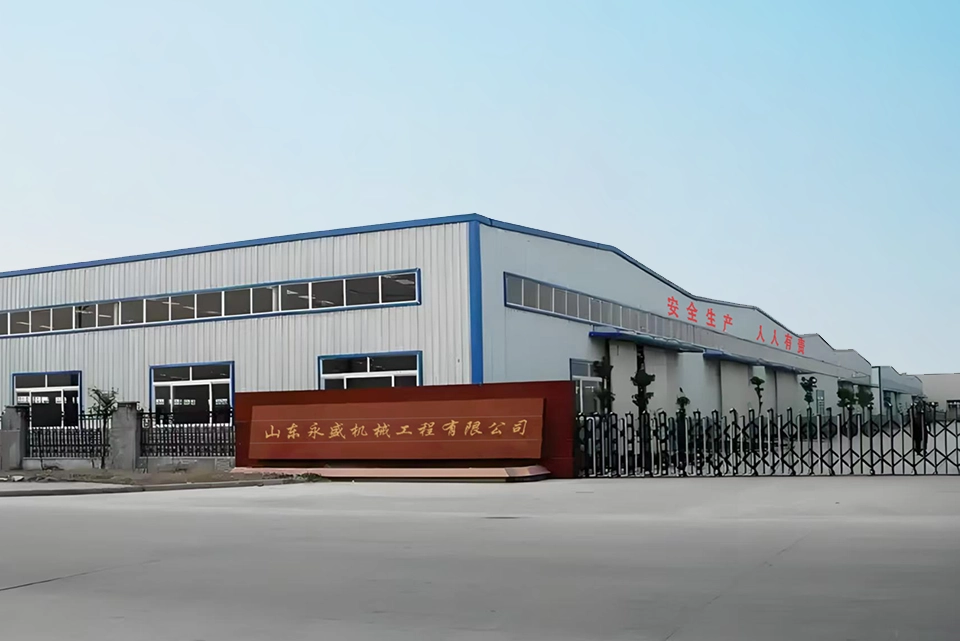

Shandong Yongsheng Mechanical Engineering Co., Ltd. was established in 2020 and is headquartered in Jinan, Shandong, China. It is a high-tech enterprise specializing in construction machinery, integrating R&D, manufacturing, sales and export services. The company has a modern production and marketing base of 26,000 square meters, and its products are committed to providing safe and efficient earthwork, mineral resources and lifting machinery solutions for the fields of construction, mineral energy, transportation, etc.
